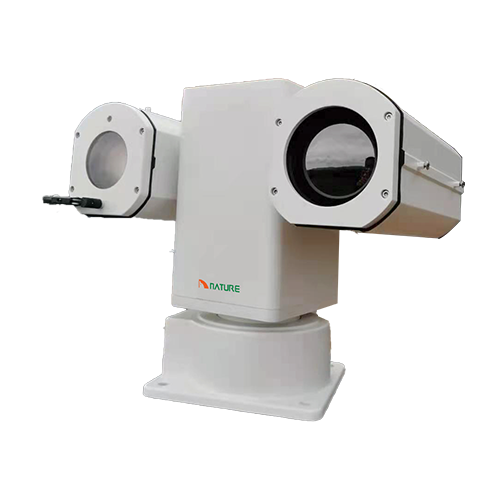

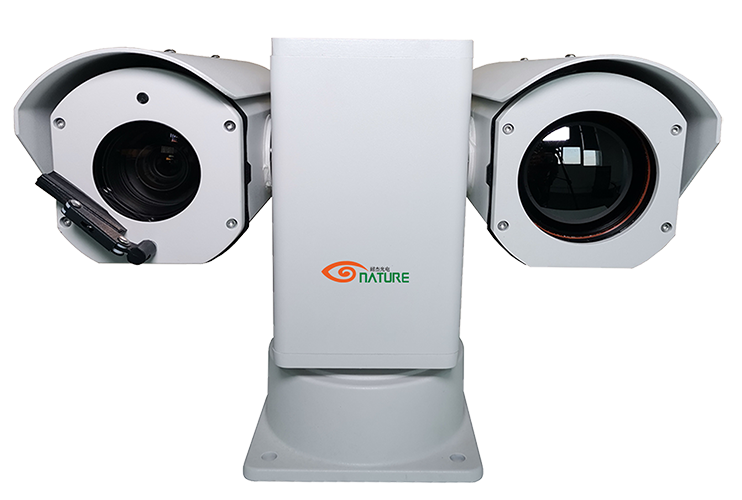

nvt-9500-xxx

full automatic zoom and focus: fully automatic zoom and focus with integrated optical defogging and servo tracking.

visible and thermal imaging combination:visible light and thermal imaging combination with multi-channel imaging and data fusion.

edge computing and target recognition:built-in algorithms for recognizing over 80 categories of targets including humans, vehicles, ships, etc.supports specific target detection and identification.

thermal source detection and tracking: integrated detection, tracking, warning, and alarm for thermal sources.links with visible light imaging for zoomed-in views and snapshots.

wide range design:horizontal rotation of 0-360° and vertical rotation of -90° to 90°, suitable for close-range target detection and tracking.

accurate azimuth and field of view feedback:precise azimuth and field of view feedback for physical positioning of moving targets like drones, vehicles, and ships.

low power consumption and lightweight design:low power consumption with total power ≤ 20w, and total weight ≤ 8kg.

ip67 protection level:ip67 protection against water and dust, designed for operation in ultra-low temperatures and equipped with shock absorption, suitable for high-level and harsh environments.

integration options:can be integrated with radar, gps positioning, environmental parameters, and power management.

applications: covers a range of industry applications, including tracking small, slow-moving targets up to 1-2 kilometers in the air, and typical targets on land or sea up to 1-3 kilometers away, such as humans, vehicles, and ships.
